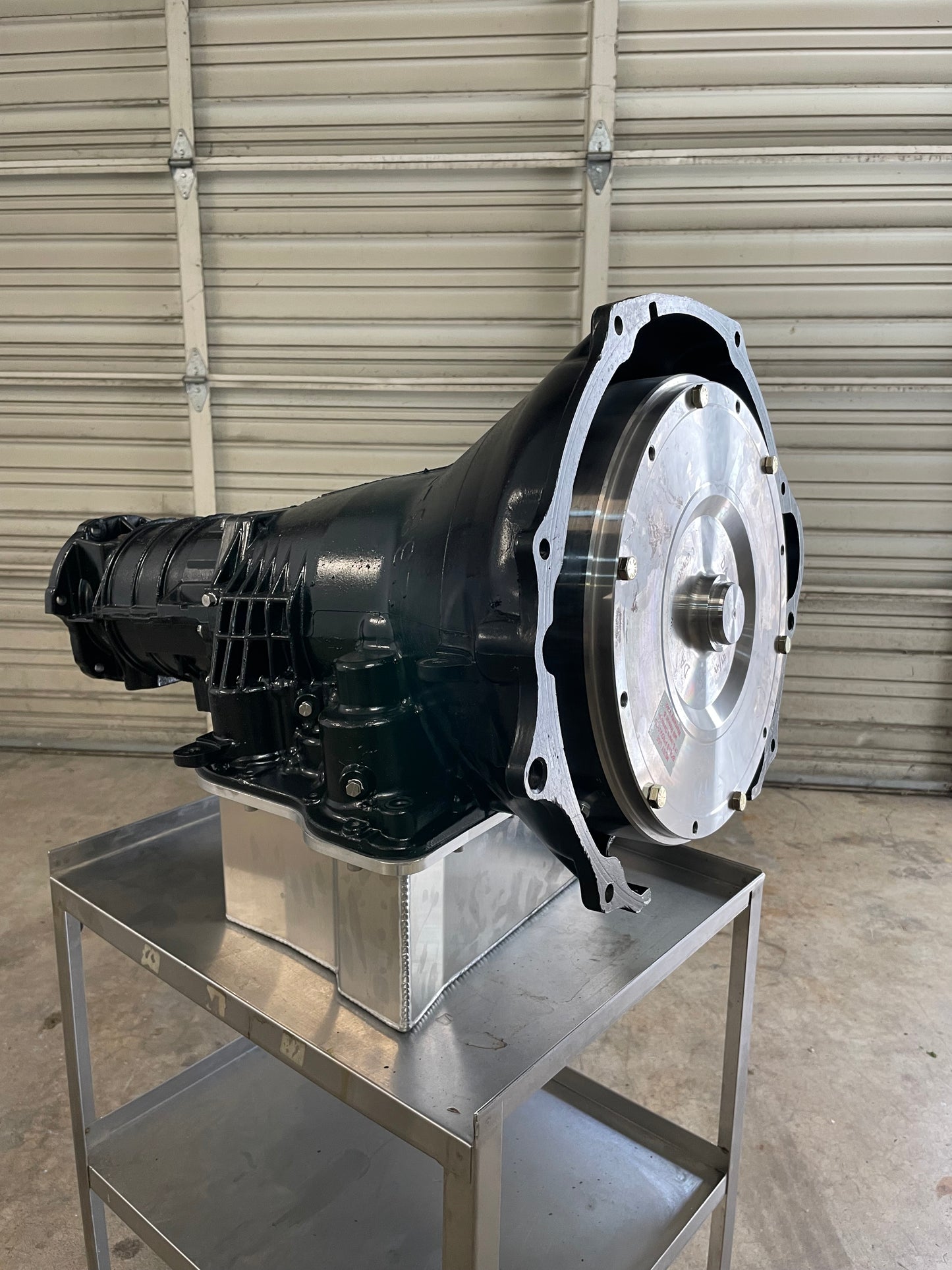

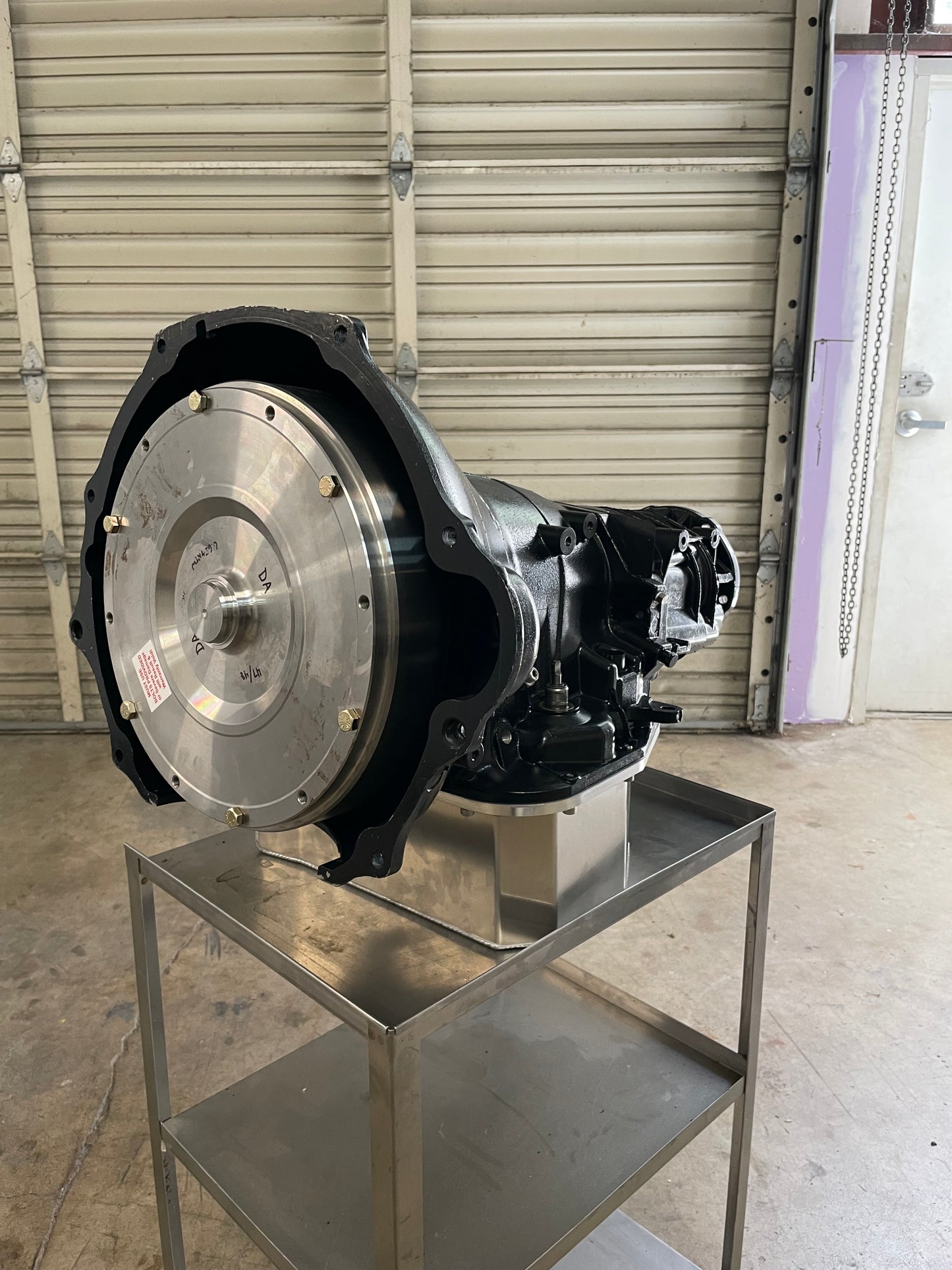

R&C Diesel Stage 3 48RE 2003-2007

Billet 23 Spline Input shaft

Billet 23 Spline Output shaft

Billet 2nd gear servo, Rear servo and Accumulator

Billet 4.2 lever, Strut and Anchor

All clutches are Raybestos GPZ with black Kolene steels, 6 frictions in direct drum and 6 in OD brake.

Custom Dyno Tested High Pressure Valve Body

All new gaskets, lips seals, sealing rings.

New 2nd gear and Reverse band

New Overdrive Roller Clutch

New Pump and Direct drum bushings

New Torrington and thrust bearings throughout.

New TCC and Overdrive solenoids

TIG welded annulus gears

New Governor Transducer and pressure sensors

True 48re 6 pinion steel Planetaries

TIG welded deep aluminum pan
